MTL5546 MTL Din-Rail Mounted Intrinsically Safe Isolator

Brand Name : MTL

Model Number : MTL5546

Place of Origin : England

MOQ : 1

Price : Negotiable

Payment Terms : T/T,Western Union

Supply Ability : 500pcs/month

Delivery Time : 3 working days

Packaging Details : original package

Condition : original brand new

Warranty : one year

Shipping way : DHL FedEx express

Application : Automation Industries, oil, gas, chemical industries

Certificate : CE ISO TUV

Contact Now

MTL5546 MTL Din-Rail Mounted Intrinsically Safe Isolator

Eaton Crouse-Hinds series MTL5500 isolating driver with 1 channel analogue output, designed for hazardous locations. Features 20-35 Vdc power supply, 0.8W power dissipation, and 4-20mA signal support with HART communication protocol.

Product Specifications

Product Name	Eaton Crouse-Hinds series MTL5500 isolating driver
Catalog Number	MTL5546 - FSM ASSESSED
EAN	3066227675813
Product Type	Isolating driver
Type	For 4-20mA HART valve positioners with line fault detection
Dimensions	109.8 mm (L) × 118.8 mm (H) × 15.8 mm (W)
Weight	150 g

Technical Specifications

Power Supply	20-35 Vdc
Current Consumption	35mA at 24 Vdc
Power Dissipation	0.8W at 24V
Signal Type	Analogue output
Signal Range	4-20mA
Number of Channels	1
Response Time	Settles within 200µA of final value within 100ms
Minimum Load Resistance	90Ω (short circuit detection at <50Ω)
Maximum Load Resistance	800Ω (16V at 20mA)
Transfer Accuracy	Better than 20µA
Temperature Drift	<1.0µA/°C
Ripple	<40µA peak-to-peak
Switching Frequency	500 Hz to 10 kHz

Environmental & Safety Specifications

Area Classification	Hazardous/Classified Locations
Standards	IECEx/ATEX, IEC
IECEx/ATEX Hazardous Rating	Zone 0
Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 80°C
Humidity	5-95% relative humidity
Safety Integrity Level (IEC61508)	SIL2 and SIL3
EMC	EN61326
Galvanic Isolation	250V rms between safe-area circuits and power supply

Key Features

HART communication protocol support
Line fault detection capability
Green LED power indication
Crimp ferrule electrical connections
T-section 35mm DIN rail mounting
Accepts conductors up to 2.5mm² stranded or single-core
Input characteristics: Normal <6.0V, Open and short circuit <0.9mA
Under/Over Range: Over range = 24mA, Under range = 1mA

MTL5546 MTL Din-Rail Mounted Intrinsically Safe Isolator

Product Tags:

MTL5546 DIN rail isolator

intrinsically safe barrier isolator

MTL DIN rail mounted isolator

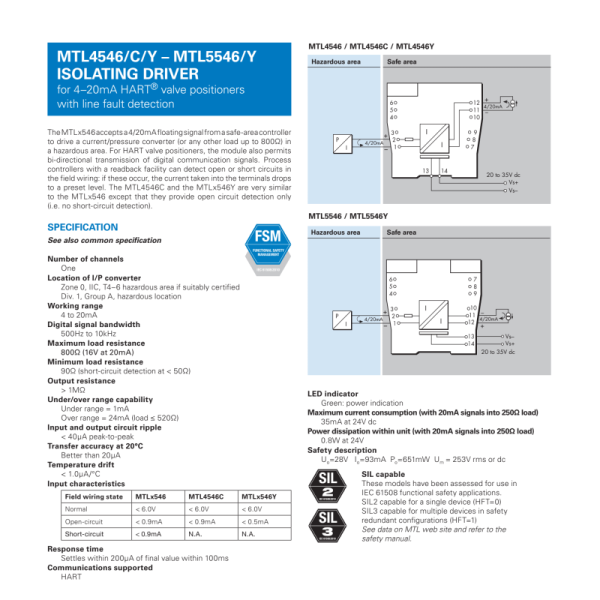

MTL5546 MTL Din-Rail Mounted Intrinsically Safe Isolator Images
